#include <SimNode.h>

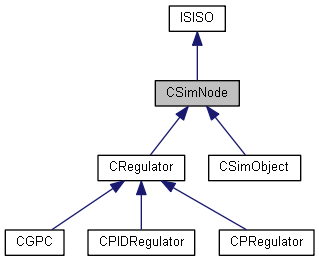

Inheritance diagram for CSimNode:

[legend]

Collaboration diagram for CSimNode:

Public Member Functions
	CSimNode (int nID=0, ObjType Type=simobject, std::string const &sName=std::string("node"))
	Constructs the base abstract class for simulation object handling. More...

double	Simulate (double dInput) override=0
	Outputs one step of the simualtion given one sample of the input. More...

void	GetOutputHistory (std::vector< double > &vHist) const override
	Outputs all output samples recorded by far. More...

void	EraseOutputHistory () override
	Deletes all recorded samples of output. More...

virtual void	SetOutputHistory (std::vector< double > &vHist) override
	Set output history. More...

virtual void	SetInputHistory (std::vector< double > &vHist) override
	Set input history. More...

void	SaveState (boost::property_tree::ptree &pt) const override=0
	Adds internal object state data to the stream object. More...

void	LoadState (boost::property_tree::ptree::value_type const &v) override=0
	Load internal object state data from tree. Each object manages the data itself. More...

void	SetID (int nID=0) override
	Enables user to set an ID of the object. User must ensure that the name is unique. More...

int	GetID () const override
	Fetches object's ID. More...

void	SetName (std::string &sName) override
	Registers a name with the object. User must ensure that the name is unique. More...

const std::string &	GetName () const override
	Fetches object's name. More...

void	GetName (boost::property_tree::ptree &nameTree) const override
	Builds a tree containing names and types of all children nodes. More...

void	SetParent (ISISO *Parent) override
	Sets object's parent. There can be only one parent of the same object. More...

ISISO *	GetParent () override
	Fetches object's parent pointer. More...

void	AddChild (std::shared_ptr< ISISO > Child) override
	Allows adding children to the object. More...

void	RemoveChild (std::shared_ptr< ISISO > Child)
	Removes a child of the object. More...

void	GetChildren (std::list< std::weak_ptr< ISISO > > &lChildren) const override
	Fetches the list of object's children. More...

bool	RemoveObject (int nID) override
	Allows to remove the object. Function searches all the children of the object. More...

ISISO *	SearchObject (const std::string &s) override
	Searches all the children of the object to find object with the specified name. More...

ISISO *	FindFirstRegulator () override
	Searches the tree for the first regulator object.

ObjType	GetType () const override
	Retrive object functional type. More...

void	SetType (ObjType Type) override
	Set object functional type. More...

void	SetStreamForOutput (std::shared_ptr< std::ostream > oStream) override
	Set the output stream for object output values. More...

void	SetVariableToStoreCurrentOutput (std::weak_ptr< double > dOutVal)
	Set the variable to store the current output value. More...

void	SetVariableToStoreCurrentInput (std::weak_ptr< double > dInVal)
	Set the variable to store the current input value. More...

void	RemoveStreamForOutput () override
	Disable the output stream for objects input values. More...

bool	MoveObjectToFront (ISISO *FrontObject) override
	Move object to the front so it can be run first. More...

void	ResetMemory () override
	Resets objects memory (reset generators if present). More...

Protected Attributes
int	m_nID
	Objects unique ID.

std::string	m_sName
	Objects unique name.

CHistorian	m_OutputHistory
	Output sample history.

CHistorian	m_InputHistory
	Input sample history.

std::list< std::shared_ptr < ISISO > >	m_lChildren
	List of children.

ISISO *	m_Parent
	Pointer to parent.

ObjType	m_Type
	Objects type.

std::shared_ptr< std::ostream >	m_oStream
	Output stream.

std::weak_ptr< double >	m_dOutVal
	Pointer to variable storing last output value.

std::weak_ptr< double >	m_dInVal
	Pointer to variable storing last input value.

Detailed Description

Class implements a common functionality of simulation objects and a composite design pattern to inherit futher.

: It defines the basic self organizing tree data structure and ensures no memory leaks by automatic deallocation of its children when the node is being removed.

: For more

See also: ISISO.

Constructor & Destructor Documentation

CSimNode::CSimNode	(	int	nID = `0`,
		ObjType	Type = `simobject`,
		std::string const &	sName = `std::string("node")`
	)

Constructs the base abstract class for simulation object handling.

Parameters

[in]	nID	Proposed ID for object. Given 0 next viable id will be found automaticly.
[in]	Type	Type of the object.
[in]	sName	Proposed name to register.

DEBUG

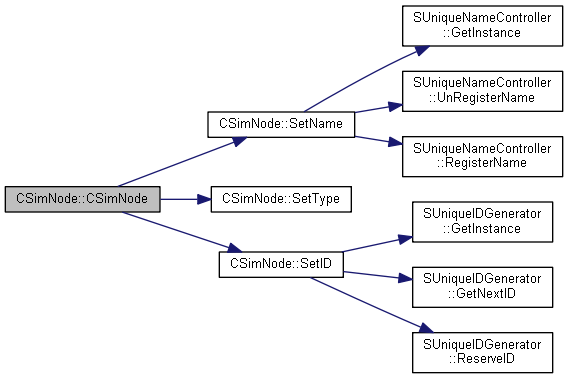

Here is the call graph for this function:

Member Function Documentation

void CSimNode::AddChild ( std::shared_ptr< ISISO > Child )

overridevirtual

Allows adding children to the object.

Parameters

[in] Child Adds the given child.

prevent setting an object its own child

Implements ISISO.

void CSimNode::EraseOutputHistory ( )

inlineoverridevirtual

Deletes all recorded samples of output.

Implements ISISO.

void CSimNode::GetChildren ( std::list< std::weak_ptr< ISISO > > & lChildren ) const

overridevirtual

Fetches the list of object's children.

Parameters

[out] lChildren Pointes to all the children from the object as a list.

Implements ISISO.

int CSimNode::GetID ( ) const

inlineoverridevirtual

Fetches object's ID.

Returns: ID of the object.

Implements ISISO.

const std::string& CSimNode::GetName ( ) const

inlineoverridevirtual

Fetches object's name.

Returns: Reference to the objects name.

Implements ISISO.

Here is the caller graph for this function:

void CSimNode::GetName ( boost::property_tree::ptree & nameTree ) const

overridevirtual

Builds a tree containing names and types of all children nodes.

Parameters

[out] nameTree Builds tree containing names of object and all its children.

ask children to write their state data

Implements ISISO.

void CSimNode::GetOutputHistory ( std::vector< double > & vHist ) const

inlineoverridevirtual

Outputs all output samples recorded by far.

Parameters

[out] vHist Returns output history as a vector of doubles.

Implements ISISO.

Here is the call graph for this function:

ISISO* CSimNode::GetParent ( )

inlineoverridevirtual

Fetches object's parent pointer.

Returns: Pointer to the parent.

Implements ISISO.

ObjType CSimNode::GetType ( ) const

inlineoverridevirtual

Retrive object functional type.

Returns: Returns type of the object.

Implements ISISO.

Here is the caller graph for this function:

void CSimNode::LoadState ( boost::property_tree::ptree::value_type const & v )

overridepure virtual

Load internal object state data from tree. Each object manages the data itself.

Parameters

[in] v Property tree to deserialize objects data from.

Implements ISISO.

Implemented in CPIDRegulator, CGPC, CSimObject, and CPRegulator.

bool CSimNode::MoveObjectToFront ( ISISO * FrontObject )

overridevirtual

Move object to the front so it can be run first.

Parameters

[in] FrontObject Pointer to the object to move.

Implements ISISO.

void CSimNode::RemoveChild ( std::shared_ptr< ISISO > Child )

inlinevirtual

Removes a child of the object.

Parameters

[in] Child Pointer to the child to remove from the tree.

Implements ISISO.

bool CSimNode::RemoveObject ( int nID )

overridevirtual

Allows to remove the object. Function searches all the children of the object.

Returns: True if object successfuly removed.

Parameters

[in] nID Searches an object with the given id and removes it from the tree.

Implements ISISO.

void CSimNode::RemoveStreamForOutput ( )

inlineoverridevirtual

Disable the output stream for objects input values.

Implements ISISO.

void CSimNode::ResetMemory ( )

overridevirtual

Resets objects memory (reset generators if present).

Implements ISISO.

Here is the call graph for this function:

Here is the caller graph for this function:

void CSimNode::SaveState ( boost::property_tree::ptree & pt ) const

overridepure virtual

Adds internal object state data to the stream object.

Parameters

[out] pt Property tree to store serialized object.

Implements ISISO.

Implemented in CPIDRegulator, CGPC, CSimObject, and CPRegulator.

ISISO * CSimNode::SearchObject ( const std::string & s )

overridevirtual

Searches all the children of the object to find object with the specified name.

Returns: Pointer to found object or nullptr.

Parameters

[in] s Name of an object to search.

Implements ISISO.

Here is the call graph for this function:

Here is the caller graph for this function:

void CSimNode::SetID ( int nID = 0 )

overridevirtual

Enables user to set an ID of the object. User must ensure that the name is unique.

Parameters

[in] nID New, proposed ID value. When set to 0 picks first available.

trying to reserve ID

Implements ISISO.

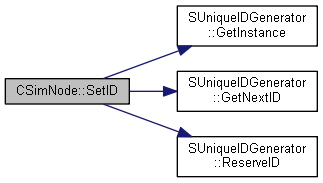

Here is the call graph for this function:

Here is the caller graph for this function:

virtual void CSimNode::SetInputHistory ( std::vector< double > & vHist )

inlineoverridevirtual

Set input history.

Parameters

[out] vHist Sets input history as a vector of doubles.

Implements ISISO.

Here is the call graph for this function:

void CSimNode::SetName ( std::string & sName )

overridevirtual

Registers a name with the object. User must ensure that the name is unique.

Parameters

[in] sName Tries to register new name of the object.

Implements ISISO.

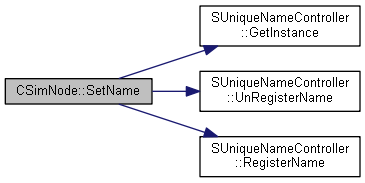

Here is the call graph for this function:

Here is the caller graph for this function:

virtual void CSimNode::SetOutputHistory ( std::vector< double > & vHist )

inlineoverridevirtual

Set output history.

Parameters

[in] vHist Sets new output history.

Implements ISISO.

Here is the call graph for this function:

void CSimNode::SetParent ( ISISO * Parent )

overridevirtual

Sets object's parent. There can be only one parent of the same object.

Parameters

[in] Parent Pointer to the parent.

inform old parent about the child loss

Implements ISISO.

Here is the call graph for this function:

void CSimNode::SetStreamForOutput ( std::shared_ptr< std::ostream > oStream )

inlineoverridevirtual

Set the output stream for object output values.

Parameters

[in] oStream Output stream to store output data to.

Implements ISISO.

void CSimNode::SetType ( ObjType Type )

inlineoverridevirtual

Set object functional type.

Parameters

[in] Type Type of the object to set.

Implements ISISO.

Here is the caller graph for this function:

void CSimNode::SetVariableToStoreCurrentInput ( std::weak_ptr< double > dInVal )

inlinevirtual

Set the variable to store the current input value.

Parameters

[out] dInVal Pointer of the variable to store last input into.

Implements ISISO.

void CSimNode::SetVariableToStoreCurrentOutput ( std::weak_ptr< double > dOutVal )

inlinevirtual

Set the variable to store the current output value.

Parameters

[out] dOutVal Pointer of the variable to store last output into.

Implements ISISO.

double CSimNode::Simulate ( double dInput )

overridepure virtual

Outputs one step of the simualtion given one sample of the input.

Returns: Next simulation output.

Parameters

[in] dInput Next input (can be feedback) value.

Implements ISISO.

Implemented in CSimObject, CRegulator, CGPC, CPIDRegulator, and CPRegulator.

The documentation for this class was generated from the following files:

SimulationChain/Source/SimNode.h
SimulationChain/Source/SimNode.cpp
