#include <Historian.h>

Public Member Functions
	CHistorian (int nMaxSamples=10)
	Constructs historian object. More...

void	SetMaxSamples (unsigned int nMaxSamples)
	Sets maximum samples stored. More...

unsigned int	GetMaxSamples () const
	Returns number indicating maximum samples stored. More...

unsigned int	GetNumOfSamplesStored ()
	Returns number indicating how many samples were stored were added to the object from the beginning of its existance.

void	AddSample (double dSample)
	Insert a sample to the history record. More...

std::unique_ptr< std::vector < double > >	RetriveNSamples (int nN=0) const
	Return N samples stored. If The number of stored samples is lower than desired the returned vector will have last nN - numOfSamplesStored set to 0. More...

void	RetriveNSamples (std::vector< double > &v, int nN=0) const
	Return N samples stored. If The number of stored samples is lower than desired the returned vector will have last nN - numOfSamplesStored set to 0. More...

void	SetHistory (std::vector< double > &v)
	Clears stored samples and copies values from vector. More...

void	Clear ()
	Clears stored samples.

double	LastSample ()
	Returns last stored sample.

Detailed Description

Handles storing and dispensing given amount of samples.

: Using double-ended queue internally to ensure high performance when adding and retrieving samples.

Constructor & Destructor Documentation

CHistorian::CHistorian ( int nMaxSamples = 10 )

inline

Constructs historian object.

Parameters

[in] nMaxSamples Maximum samples to store.

void CHistorian::AddSample ( double dSample )

Insert a sample to the history record.

Parameters

[in] dSample New sample value.

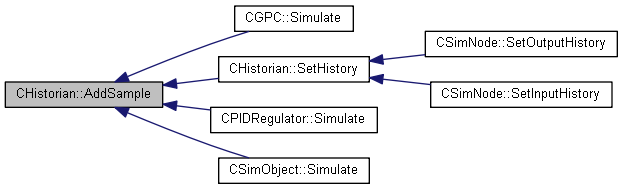

Here is the caller graph for this function:

unsigned int CHistorian::GetMaxSamples ( ) const

inline

Returns number indicating maximum samples stored.

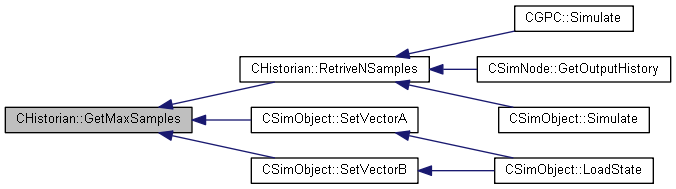

Here is the caller graph for this function:

std::unique_ptr< std::vector< double > > CHistorian::RetriveNSamples ( int nN = 0 ) const

Return N samples stored. If The number of stored samples is lower than desired the returned vector will have last nN - numOfSamplesStored set to 0.

Here is the call graph for this function:

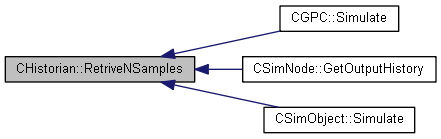

Here is the caller graph for this function:

void CHistorian::RetriveNSamples	(	std::vector< double > &	v,
		int	nN = `0`
	)		const

Return N samples stored. If The number of stored samples is lower than desired the returned vector will have last nN - numOfSamplesStored set to 0.

Parameters

[out]	v	Vector of stored samples.
[in]	nN	Number of samples to retrieve. nN = 0 gives all samples.

Here is the call graph for this function:

void CHistorian::SetHistory ( std::vector< double > & v )

Clears stored samples and copies values from vector.

Parameters

[in] v Sets new history of stored values.

Here is the call graph for this function:

Here is the caller graph for this function:

void CHistorian::SetMaxSamples ( unsigned int nMaxSamples )

Sets maximum samples stored.

Parameters

[in] nMaxSamples Maximum samples to store.

Here is the caller graph for this function:

The documentation for this class was generated from the following files:
