#include <SLogic.h>

Public Member Functions
void	Run ()
	Main program flow is defined in this function.

void	RunSimulation (int nTime, int nPeriod)
	Main simulation procedure. Takes time and period as milliseconds. More...

void	ToggleSimulation ()
	Runs or pauses simulation. Uses m_nTime and m_nPeriod values.

void	SetSimulationParameters (int nTime, int nPeriod)
	Sets parameters. Accepts values in miliseconds. More...

bool	IsSimulatonChainReady ()
	Checks if simulation can be executed properly. More...

void	ResetSimulation ()
	Resets all memory values from the simulation chain. Does not delete objects parameters or generators.

bool	SaveSimChain (const std::string sFileName)
	Commands to write the simualtion chain data into the specified file. More...

bool	LoadSimChain (const std::string sFileName)
	Tries to load the simulation chain from the .xml file. More...

bool	SaveObjectOutputToFile (const std::string sObjName, std::string sFileName="")
	Sets object to save its output to specified file. More...

bool	StopSavingObjectOutputToFile (const std::string sObjName)
	Disables the file output for a chosen object. More...

int	GetPeriod () const
	Returns simulation period.

void	ChangeIdentificationParams (int nNomDegree, int nDenomDegree, int nDelay, int nTreshold, double dForgettingFactor)
	Changes identification parameters. More...

void	GetLastIdentifiedNominator (std::vector< double > &vNom)
	Retrieves last identified nominator. More...

void	GetLastIdentifiedDenominator (std::vector< double > &vDenom)
	Retrieves last identified denominator. More...

void	SetGUIInstance (MainWindow *MainWindowPtr)
	Set the GUI handle. This method has to be called as soon as possible after creation of the SLogic instance. More...

void	ObjectFocusChange (std::string &sObjName)
	When user selects an object in GUI, this method is called. It searches object with the given name and builds its property tree. More...

void	ExtractPropertySubtree (QString &qsParentName, const boost::property_tree::ptree &p)
	Helper method to call recursively when building property tree. More...

void	SelectedObjectEdited (const std::string &sObjName, const std::string &sKey, const std::string &sValue)
	Called from GUI when the value is edited. More...

bool	UpdateTreeValue (boost::property_tree::ptree &p, const std::string &sObjName, const std::string &sKey, const std::string &sNewValue)
	Called from SelectedObjectEdited(). Helper method to update simulation tree. More...

Static Public Member Functions
static SLogic &	GetInstance ()
	Returns the only one instance of the singleton.

static void	DestroyInstance ()
	Deletes the only instance. This must be called after the Run() function in order to dealocate program memory in managed way.

Detailed Description

Implemenets Control module of the MVC model.

Responsible for connecting GUI with simulation data model and organising data flow.
Enables saving and loading the state of the program from and external file.
Features simulation in an external thread.
Owns root of the simulation chain and identification algorithm visible to the user via GUI.
Note
Implements multi-threading safe singleton pattern.

Warning
This class is not a RAII class. It needs to be explicitly destroyed by the end of the application lifetime to avoid potential invalid memory accesses.

Member Function Documentation

void SLogic::ChangeIdentificationParams	(	int	nNomDegree,
		int	nDenomDegree,
		int	nDelay,
		int	nTreshold,
		double	dForgettingFactor
	)

inline

Changes identification parameters.

Parameters

[in]	nNomDegree	Nominator degree.
[in]	nDenomDegree	Denominator degree.
[in]	nDelay	Delay value.
[in]	nTreshold	Treshold for estimator safety.
[in]	dForgettingFactor	Forgetting factor.

void SLogic::ExtractPropertySubtree	(	QString &	qsParentName,
		const boost::property_tree::ptree &	p
	)

Helper method to call recursively when building property tree.

Parameters

[in]	qsParentName	Name of the parent node.
[in]	p	Property tree to build gui tree from.

Here is the caller graph for this function:

void SLogic::GetLastIdentifiedDenominator ( std::vector< double > & vDenom )

inline

Retrieves last identified denominator.

Parameters

[out] vNom Vector with denominator values.

void SLogic::GetLastIdentifiedNominator ( std::vector< double > & vNom )

inline

Retrieves last identified nominator.

Parameters

[out] vNom Vector with nominator values.

bool SLogic::IsSimulatonChainReady ( )

Checks if simulation can be executed properly.

Returns: True if everything is set up properly (data loaded etc).

Here is the caller graph for this function:

bool SLogic::LoadSimChain ( const std::string sFileName )

Tries to load the simulation chain from the .xml file.

Parameters

[in] sFileName Filename to load data from.

Returns: True if successfully loaded.

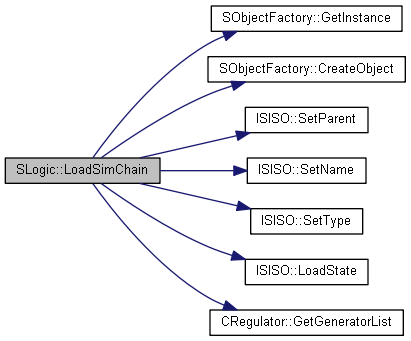

Here is the call graph for this function:

Here is the caller graph for this function:

void SLogic::ObjectFocusChange ( std::string & sObjName )

When user selects an object in GUI, this method is called. It searches object with the given name and builds its property tree.

Parameters

[in] sObjectName Objects name.

Here is the call graph for this function:

void SLogic::RunSimulation	(	int	nTime,
		int	nPeriod
	)

Main simulation procedure. Takes time and period as milliseconds.

Parameters

[in]	nTime	Simulation interval.
[in]	nPeriod	Simulation period.

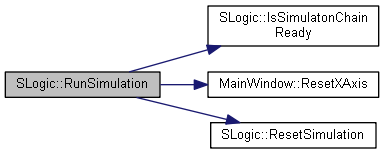

Here is the call graph for this function:

bool SLogic::SaveObjectOutputToFile	(	const std::string	sObjName,
		std::string	sFileName = `""`
	)

Sets object to save its output to specified file.

Parameters

[in]	sObjName	Object name to search for.
[in]	sFileName	File to save output data to.

Returns: True if successfully set up the data transmission.

Here is the call graph for this function:

Here is the caller graph for this function:

bool SLogic::SaveSimChain ( const std::string sFileName )

Commands to write the simualtion chain data into the specified file.

Parameters

[in] sFileName Filename to save data into.

Returns: True if successfully saved.

Here is the caller graph for this function:

void SLogic::SelectedObjectEdited	(	const std::string &	sObjName,
		const std::string &	sKey,
		const std::string &	sValue
	)

Called from GUI when the value is edited.

Parameters

[in]	sObjName	Name of the object edited.
[in]	sKey	Key edited.
[in]	sValue	New value of the key.

Here is the call graph for this function:

void SLogic::SetGUIInstance ( MainWindow * MainWindowPtr )

inline

Set the GUI handle. This method has to be called as soon as possible after creation of the SLogic instance.

Parameters

[in] MainWindowPtr Pointer to the GUI main window.

Here is the caller graph for this function:

void SLogic::SetSimulationParameters	(	int	nTime,
		int	nPeriod
	)

inline

Sets parameters. Accepts values in miliseconds.

Parameters

[in]	nTime	Simulation interval.
[in]	nPeriod	Simulation period.

bool SLogic::StopSavingObjectOutputToFile ( const std::string sObjName )

Disables the file output for a chosen object.

Parameters

[in] sObjName Object name to search for.

Returns: True if successfully found the object.

Here is the call graph for this function:

bool SLogic::UpdateTreeValue	(	boost::property_tree::ptree &	p,
		const std::string &	sObjName,
		const std::string &	sKey,
		const std::string &	sNewValue
	)

Called from SelectedObjectEdited(). Helper method to update simulation tree.

Parameters

[in]	p	Updated property tree.
[in]	sObjName	Name of the object edited.
[in]	sKey	Key edited.
[in]	sNewValue	New value of the key.

Here is the caller graph for this function:

The documentation for this class was generated from the following files:

SimulationChain/Source/SLogic.h
SimulationChain/Source/SLogic.cpp
